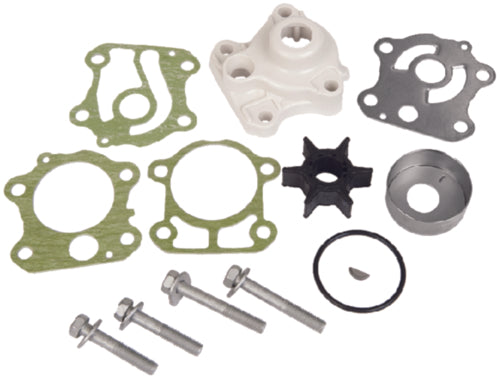

Yamaha Water Pump Kits with Housing
Replaces: 6H3-W0078-01, 6H3-44311-00
For: 70(1992-03), C60(1996-01), E60(1995-96), P60(1992-99), C70(2000-01), T50(1997-10), T60(2003-10)
Kit Contains:
Part # - Description - O.E.# - Qty.
NSS - Housing, Water Pump - 6H3-44311-00-00 - 1
18-0256 - Bolt - 97095-08045-00 - 2
18-0757 - Gasket, Water Pump - 6H3-44324-A0-00 - 1
18-3069 - Impeller - 697-44352-00-00 - 1
18-3297 - Key, Impeller - 90280-03M03-00 - 1
18-3435 - Cup, Insert - 663-44322-00-00 - 1
18-7436 - O-Ring - 93210-46044-00 - 1
NSS - Plate, Wear - 6H3-44323-00-00 - 1
NSS - Gasket, Water Pump - 6H3-44315-A0-00 - 1
NSS - Gasket, Water Pump - 688-44316-A0-00 - 1
NSS - Bolt - 97095-08055-00 - 2
NSS - Washer, Bolt - 90209-08M02-00 - 4
