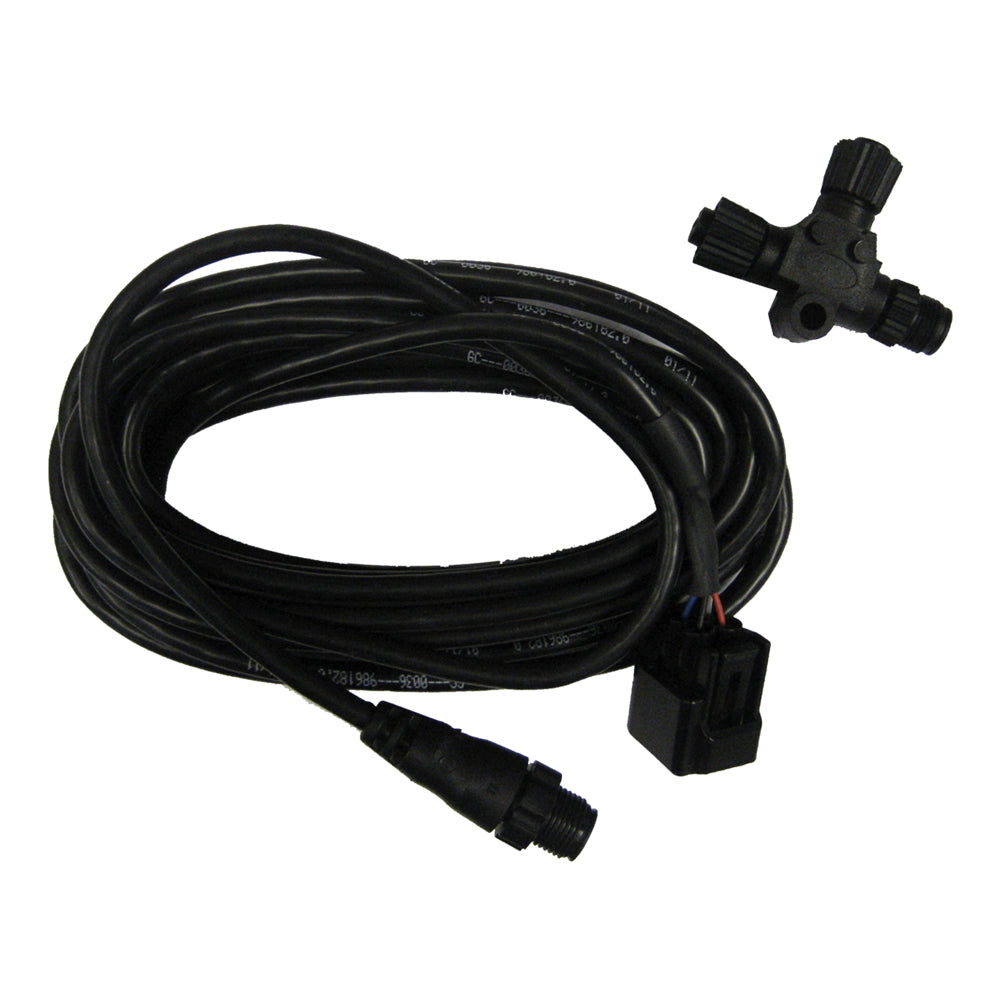

Lowrance Yamaha Engine Interface Cable 15ft and T-Connector

Lowrance Yamaha Engine Interface Cable 15ft and T-Connector

Connects to Yamaha engines without Yamaha CommandLink Plus system.2006 & newer: F50, T50, F60, T60, F75, F90, F115, LF115, F150, LF150, F200, LF200, F225, F225, F250, LF250.2006 & newer: Z150, LZ150, VZ150, Z175, Z200, LZ200, VZ225, Z250, LZ250, VZ250, Z300, LZ300, VZ300.

OutputsYamaha| 4-stroke 50-250| 2-stroke HDPI 150-350|RPM| Yes| YesAlternator Voltage| Yes| YesEngine Hours| Yes| Yes Engine Temperature| Yes| Yes Fuel Pressure| Yes| YesFuel Rate| Yes| YesOil Pressure| Yes| YesTrim *| Yes| YesWater Pressure| Yes| Yes

*Digital trim must be connected by a Yamaha dealer.

*Requires NMEA 2000 network.

Kit includes a T-connector to connect to a new or existing NMEA 2000 network. Add NMEA 2000 starter kit, part number  000-0124-69, if a network is not already installed.
