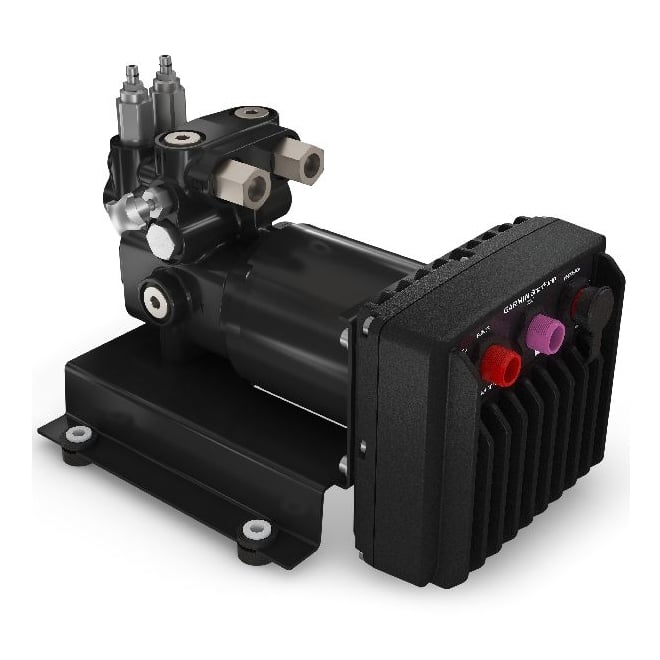

Garmin SmartPump v2
The Garmin SmartPump v2 eliminates the guesswork of choosing the right pump size for your boat. Designed to work with most hydraulically steered boats, it delivers optimum control and confidence. The compact design provides better thermal performance, higher reliability, and lower power consumption, all while being easier to install thanks to color-coded connectors.
Compared to the previous version, the SmartPump v2 is lighter and smaller while retaining corrosion-resistant components, including black dye on aluminum parts and nickel-plating on steel parts.
Specifications:
-
Dimensions (H x W x D): 6.6” x 7.5” x 10.4” (167.6 x 190.5 x 264.16 mm)
-
Weight: 16.5 lbs (7.5 kg)
-
Temperature Range: 5°F to 131°F (-15°C to 55°C)
-
Material: ECU (fully gasketed aluminum alloy), bracket (carbon steel), manifold (aluminum alloy), motor (aluminum alloy)
-
Power Cable Length: 9 ft (2.7 m)
-
Power Input: 10–30 VDC
-
Fuse: 40 A, blade-type
-
Power Usage: Standby < 1 A, Engaged 5–10 A, Peak 34 A
-
Flow Rate: Configurable from 0 to 2.4 L/min
-
Compatible Steering Cylinder Sizes: 4–24 cu in; 7-second lock-to-lock up to 17 cu in
