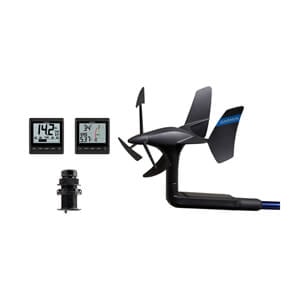

GNX Wireless Sail Pack
With a GNX Wireless Sail Pack, you will have all the equipment you need to monitor wind and water conditions with accuracy and confidence.
GNX Wind Instrument
The GNX Wind provides essential wind data for confident decision-making. Its high-visibility, glass-bonded monochrome LCD display features customizable backlight colors and interfaces through the NMEA 2000 network. It can simultaneously display two data fields and a digital wind rose, showing true and apparent wind data, steering guidance, boat speed, and more. With low power consumption (350 mW in daylight, 400 mW at night with backlight), it’s ideal for sailboats. Fully customizable user settings allow you to configure the screen layout to suit your needs. It can also connect wirelessly to a quatix 3 GPS marine smartwatch via ANT technology to stream wind data directly to your wrist.
gWind Wireless 2 Transducer
The gWind Wireless 2 offers a simple, cable-free installation by eliminating the need to run wires through masts up to 50 feet. It sends accurate wind signals via ANT connection directly to a GNX Wind instrument or compatible Garmin GPSMAP chartplotter. Its Nexus twin-fin technology and 3-bladed propeller ensure accurate wind speed readings and stable wind angle data, even in lighter conditions.
GNX 20 Marine Instrument
The GNX 20 is an easy-to-read display that shows water depth, boat speed, water temperature, and more than 50 marine parameters through the NMEA 2000 network. It offers five display configurations, including single, dual, and triple function, as well as gauge and graph modes. The glass-bonded display with anti-glare coating ensures excellent readability in both daylight and nighttime conditions, with scalable digits up to 36 mm. Its efficient design uses only 25 mA with 350 mW daytime usage and 400 mW at night with mid-level backlighting.
AIRMAR DST810 Thru-hull Smart Transducer
The DST810 provides precise depth, speed, and temperature readings, along with altitude sensing for heel/trim and pitch/roll inputs. It connects to the NMEA 2000 network and GNX 20 instrument. The transducer reads depths up to 330 feet, delivers a fast 5 Hz water speed signal, and operates at 235 kHz with a 10x44-degree fan-shaped beamwidth. Wireless BLUETOOTH connectivity allows calibration via AIRMAR’s Cast app, with advanced speed calibration available for multiple heel angles and speeds.
