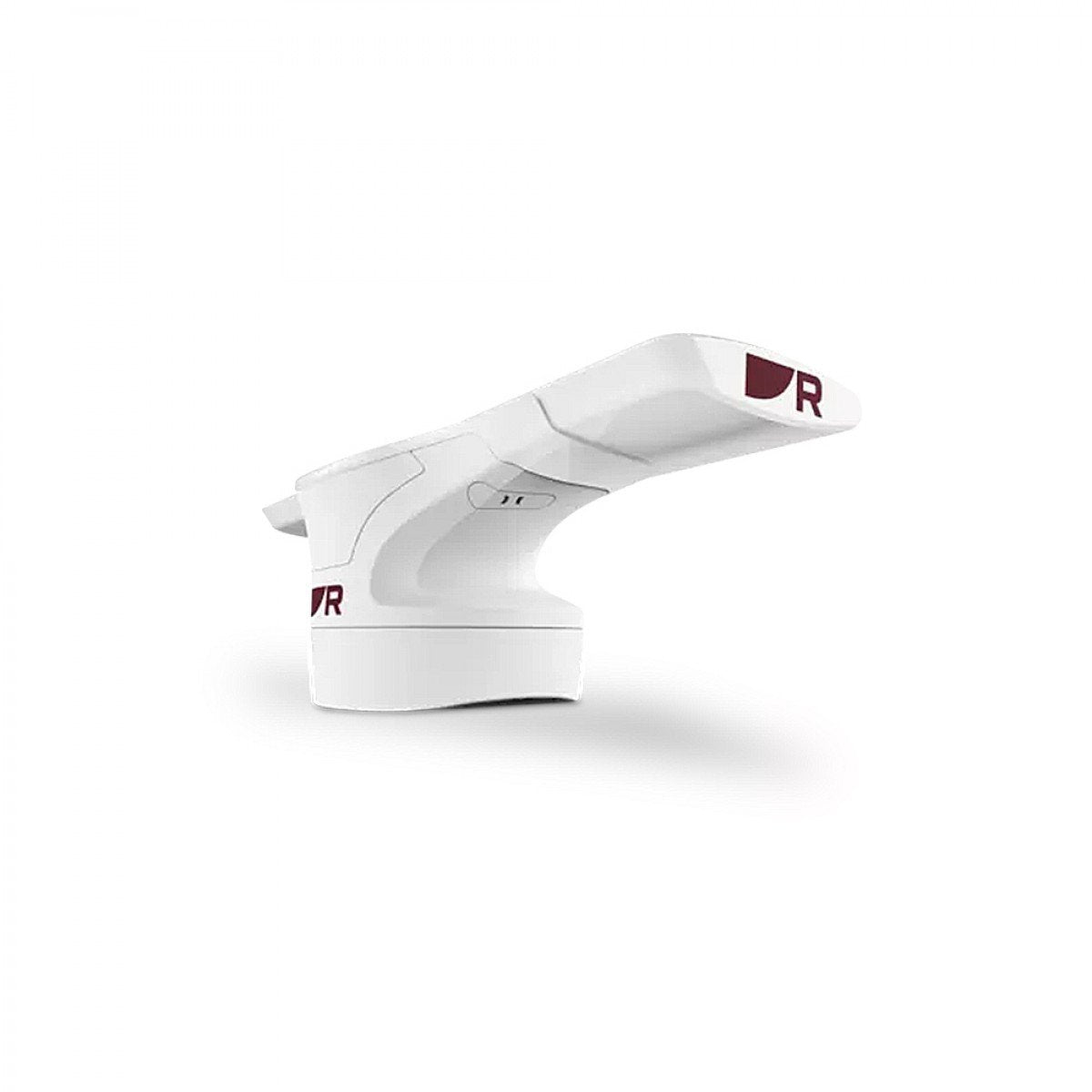

With a 55-watt solid-state transmitter, Cyclone delivers excellent target separation and long-range resolution using CHIRP pulse compression and beam sharpening technology. The power output of Cyclone is equivalent to a 6kW magnetron radar and gives Cyclone a range of up to 72 nautical miles.
Cyclone radars feature innovative detection capabilities, including Doppler target tracking, RangeFusion technology, Bird Mode, and high-speed 60 rpm imaging.
Features
- Aircraft Wing Inspired: Engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship-borne radar.
- Low Profile: At 13.1 inches (335 mm) tall, Cyclone’s lower profile allows greater flexibility of boat architecture and more adaptable installation options.
- Clean Installation: Innovative pedestal design conceals cable connections for a cleaner installation. Built-in cable gland to allow a sleeker design configuration to boat designers.
Details
- Includes 3 Foot Array and Pedestal
- Includes 15 Meter Cable Kit
- Includes VCM100 Voltage Converter
Specifications
- Antenna Size: 3 / 4 / 6 Foot Array
- Max Range Scale: 72 Nm
- Rotation Speed: 12 / 24 / 36 / 48 / 60 rpm
- Boot Up Time: 40 seconds
- Standby to Transmit: Less than 5 seconds
- Power Connection: 1x Power connector
- Data Connection: 1x RayNet connector
- Transmitter Frequency: 9370, 9400, 9430 MHz (User Selectable)
- Receiver Characteristic: Linear
- Receiver Noise: Less than 5 dB
Box Includes
- Radar Pedestal
- M10 Stud x 4
- M10 Nut x 8
- M10 Spring Washer x 4
- M10 Plain Washer x 4
- Cable Gasket
- Radar Antenna
- M8 Hex Bolt x4
- M8 Plain Washer x 4
- M8 Spring Washer x 4
- O Ring x 4
- RayNet Data Cable
- Power Cable
- Denso Paste
- Documentation Pack
