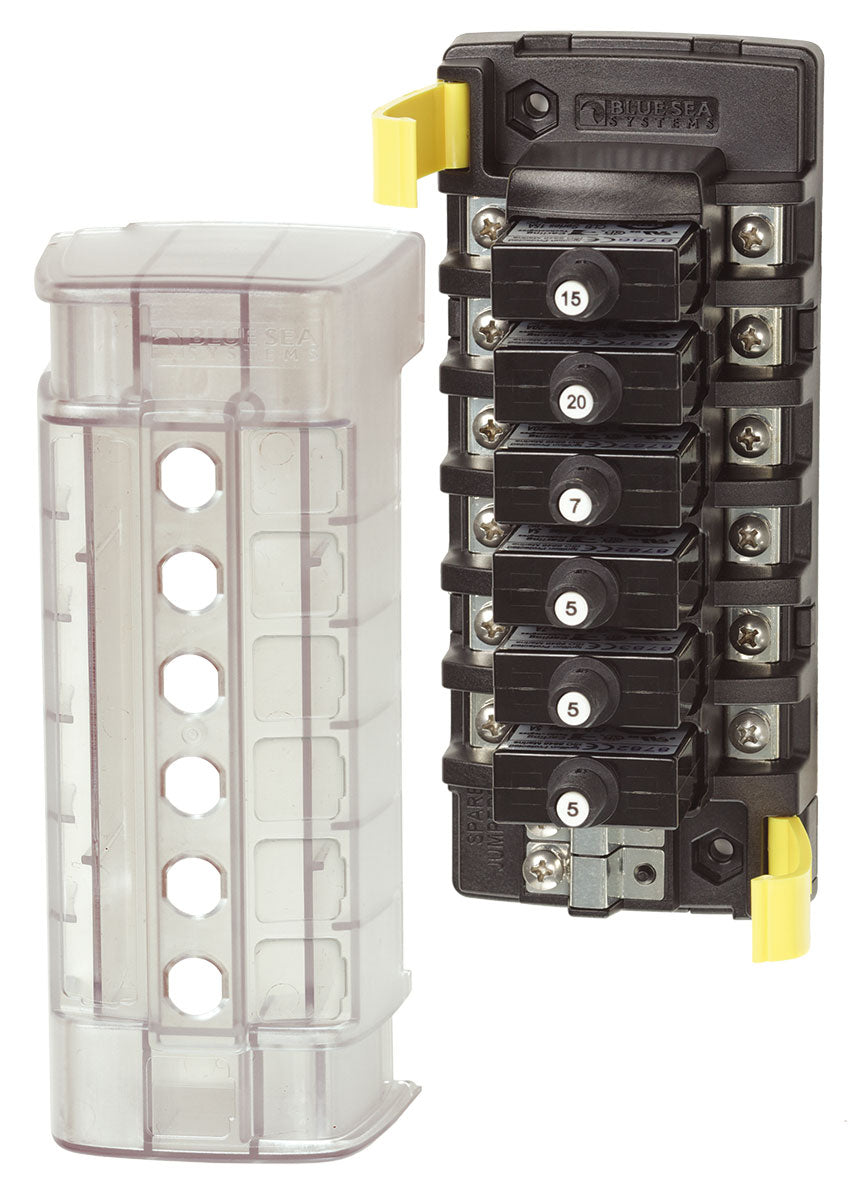

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.
Features
Quick connect clips allow circuit breakers to snap easily into place
Tin-plated copper busses and screw terminals
Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
Easy to open clip on cover
Breakouts allow wire access in two directions
Accepts ring terminals
Optional push button waterproof boots or dress nuts can be installed over cover
Accepts square labels
Circuits 6
Maximum Amperage Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application. 32A (per circuit)
40A (per jumped circuit group)
Maximum Voltage 32V DC
Mounting #8 Screw (M4) or #8 Nut
Source Independent Source
Minimum Operating Temperature -10° C
Maximum Operating Temperature 60° C
Mounting Centers 5.63in (143 mm)
Screw Terminal Type #8-32 Screws with Captive Star Lock Washer
Height 6.69in (169.93 mm)
Weight 0.75lb (0.34 kg)
