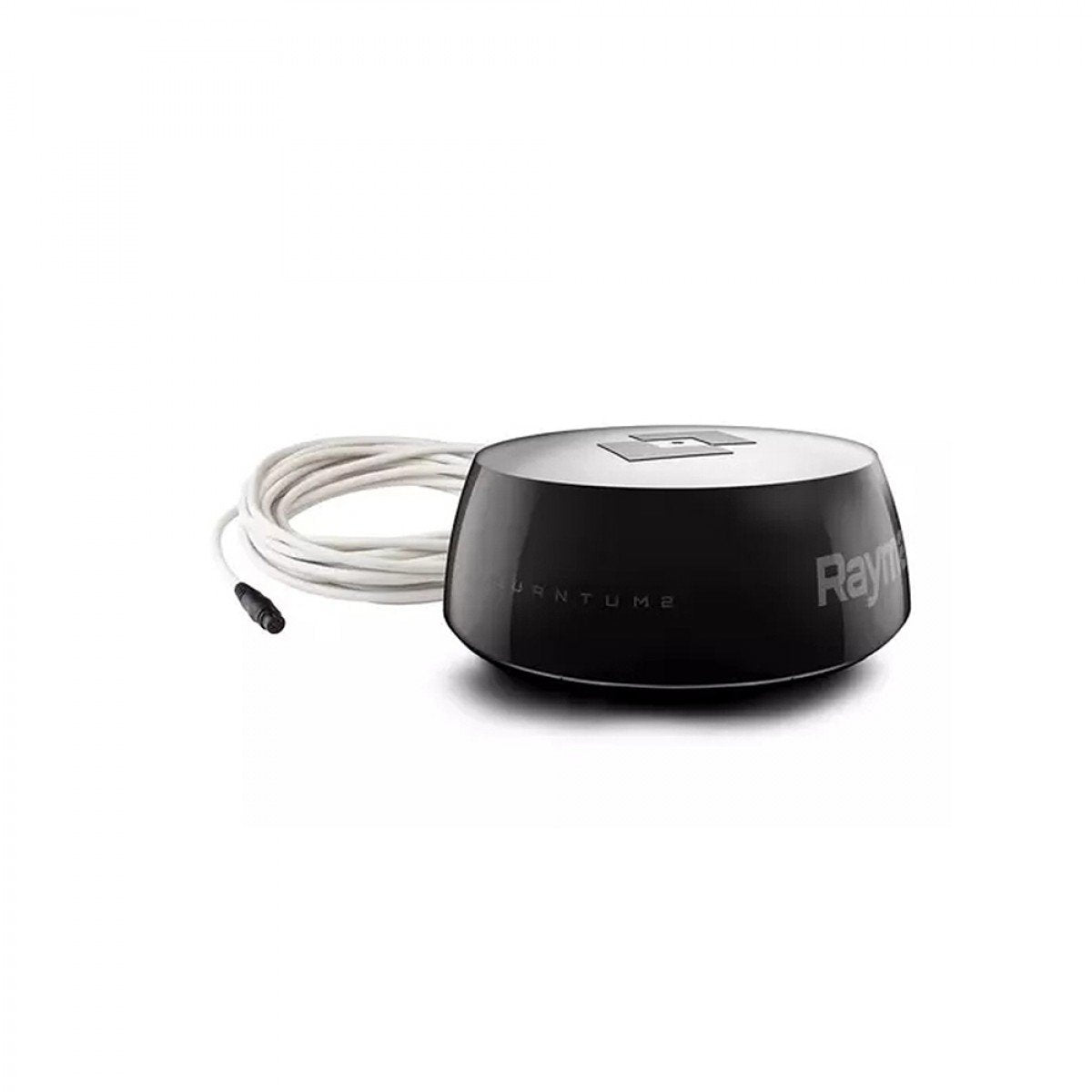

Introducing Raymarine Quantum 2 Radar with Doppler collision avoidance technology. The Quantum 2 next-generation CHIRP pulse compression radar by Raymarine provides superior target awareness at both long and extremely short ranges.
Using advanced Doppler processing, the system instantly highlights moving radar contacts and color codes them to indicate whether they are inbound or outbound. Quantum with Doppler makes it easy to discern potentially dangerous targets when navigating in high-traffic areas.
Key Features
- The Doppler moving target display allows for superior situational awareness at a glance
- Fully automatic ARPA target tracking, along with manual MARPA mode
- Adjustable TrueTrails target history shows the motion history of moving contacts
- CHIRP Pulse Compression detects contacts as close as 18 feet for zero-visibility navigation
- 24-mile range for early detection of traffic, navigation aids, landfall, and weather
- Immediate awareness – Quantum starts up and is ready to go in seconds
- Superior interference rejection eliminates noise from other radars
- Simplified installation with Wi-Fi or thin-wire network connectivity
- Easy upgrade – Quantum 2 fits the same bolt pattern as other Raymarine scanners
- Lightweight and easy to install – Quantum weighs up to 50% less than comparable magnetron radars
- Safe emissions – mount Quantum anywhere onboard
- Low power consumption for extended battery life under sail
General Specifications
- Dimensions (Diameter/Height): 541.0 mm | 209.5 mm
- Weight: 5.6 kg
- Supply voltage: Either 12 V dc or 24 V dc nominal
- Operating voltage range: Minimum: 10.8 V dc / Maximum: 31.2 V dc
- Power Consumption: Transmit mode (maximum): 17 W | Standby mode: 7 W | Sleep mode (applies only to radars connected via Wi-Fi): 2 W
- Waterproofing: IPX6
- Operating temperature range: -10°C to +55°C
- Storage temperature range: -25°C to +70°C
- Additional storage conditions: Store upright; do not block vents on the underside
- Humidity: Up to 95% at 35°C
- Maximum wind speed: 100 kts
Transmitter Specifications
- Type: X-band solid-state transmitter with pulse compression technology
- Transmit Frequency: 9354 MHz to 9446 MHz
- Peak Power Output: 20W
- Duplexer: Circulator
- Pulse Widths (3 dB): 40 ns to 14.7 us
- Chirp Lengths: 400 ns to 22 us
- Pulse Repetition Frequency: 920 Hz to 5900 Hz
- Chirp Bandwidth: Up to 32 MHz
- Standby Mode: Scanner rotation - OFF | Scanner transmission - OFF | Wi-Fi link - ON
Antenna Specifications
- Type: Patch array
- Beamwidth (nominal): Horizontal: 4.9° | Vertical: 20°
- Polarization: Horizontal
- Rotation Speed: 24 rpm nominal
Receiver Specifications
- IF Frequency: 26 MHz
- Noise Figure: Less than 4 dB
Doppler Specifications
- Target Tracking: Tracking of 25 simultaneous MARPA and/or ARPA targets
- Target Filtering: True Motion mode identifies only those objects that are moving relative to the vessel
Radar Specifications
- Transmitter Type: X-band solid-state transmitter with pulse compression technology
- Target Tracking: Track up to 25 simultaneous Radar targets
- Standby Mode: Rotation: OFF, Transmission: OFF, Wi-Fi: ON
- Antenna Type: Patch Array
- Noise: Less than 4 dB
- Beamwidth (nominal): Horizontal: 4.9°, Vertical: 20°
- Polarization: Horizontal
- Duplexer: Circulator
- Transmit Frequency: 9354 MHz to 9446 MHz
- Pulse Repetition Frequency: 920 Hz to 5900 Hz
- CHIRP Lengths: 400 ns to 22 µs
- Pulse Widths (3 dB): 40 ns to 14.7µs
- IF Frequency: 26 MHz
- Rotation Speed: 24 RPM
- Peak Power Output: 20 W
Conformance
- Standards: USA: 47CFR FCC Part 2 & Part 80 Certificate of Approval, Canada: RSS138 Iss. 1 Technical Acceptance Certificate, European Union & EFTA: Radio Equipment Directive 2014/53/EU Certificate of Opinion, Australia / New Zealand: ACMA Declaration of Conformity Compliance level 3
Environmental Specifications
- Relative Humidity: Up to 95% @ 35°C (95°F)
- Additional Storage Conditions: Store upright; do not block vents on the underside
- Waterproof Rating: IPx6
- Storage Temperature: -25°C to +70°C (-13°F to 158°F)
- Maximum Wind Speed: 100 knots
- Operating Temperature: -10°C to +55°C (14°F to 131°F)
Physical Specifications
- Dimensions: Height: 209.5 mm (8.25 in), Diameter: 541.0 mm (21.3 in)
- Weight: 5.6 kg (12.35 lbs)
Compatability
- Axiom 2 XL - 16", 19", 22", and 24" models: YES
- Axiom 2 Pro - 9", 12" and 16" RVM and -S variants: YES
- Axiom+ - 7", 9", and 12" RV and chartplotter variants: YES
- Element - 7", 9", and 12" HV and -S variants: YES
- Axiom XL - 16", 19", 22", and 24" models: YES
- Axiom Pro - 9", 12" and 16" RVX and -S variants: YES
- Axiom - 7", 9", and 12" RV and chartplotter variants: YES
- gS-Series - gS95, gS125 and gS165: YES
- eS-Series - eS95, eS97, eS98, eS125, eS127, eS128, eS165: YES
- e-Series - e7, e7D, e95, e97, e125, e127, e165: NO
- c-Series - c95, c97, c125, c127: NO
- a-Series - a75, a77, a78, a95, a97, a98, a125, a127, a128: NO
- E-Series Widescreen - E90W, E120W, E140W: NO
- C-Series Widescreen - C90W, C120W, C140W: NO
- G-Series Classic - GPM400: NO
- E-Series Classic - E80, E120: NO
- C-Series Classic - C70, C80, C120: NO
Compatibility Notes
- C-Series Classic chartplotter displays are only compatible with analog radar scanners, discontinued.
- Doppler mode is not available when connected to an Element series display
- eS Series and gS Series displays running LightHouse 3 only support a wired connection to Quantum; wireless (Wi-Fi) connection is NOT supported.
Box Includes
- Radome
- 10m Power and Data Cable
- Fixing bolts with spring washers and flat washers (M8) x 4
- Documentation
